驅動器

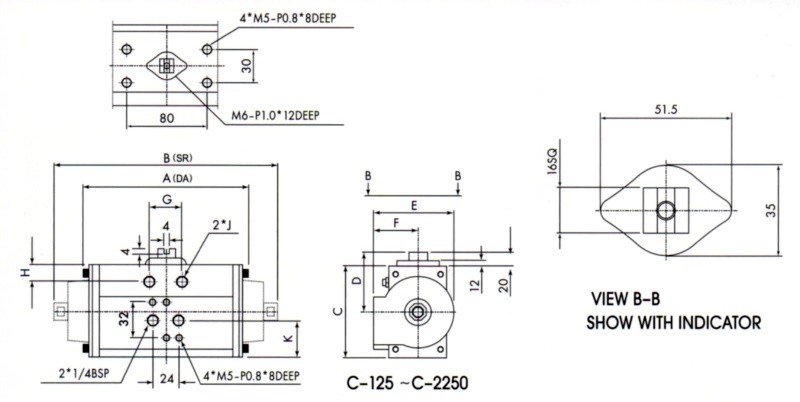

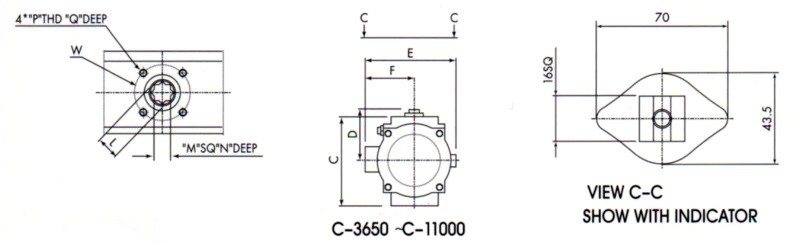

UNIT：MM

Model	ISO PATTERN	OUTPUT TORQUE AT 80PSI AIR	A	B	C	D
C-125	F04	125IN-LB	120.0	---	66.0	52.5
C-250	F04 or F05	250IN-LB	144.3	194.6	79.0	57.7
C-450	F05 & F07	450IN-LB	149.2	205.6	98.0	67.4
C-1000	F05 & F07	1000IN-LB	183.0	250.6	121.0	79.2
C-2250	F07 & F10	2250IN-LB	277.5	364.0	141.0	89.5
C-3650	F10 & F12	3650IN-LB	304.3	422.0	176.0	99.1
C-5000	F10 & F12	5000IN-LB	364.4	487.0	196.0	116.5
C-11000	F14	11000IN-LB	490.0	642.0	243.7	138.5



Model	ISO PATTERN	OUTPUT TORQUE AT 80PSI AIR	E	F	G	H
C-125	F04	125IN-LB	74.5	45.5	24.0	13.0
C-250	F04 or F05	250IN-LB	81.4	47.8	32.5	12.6
C-450	F05 & F07	450IN-LB	95.0	51.5	32.5	13.8
C-1000	F05 & F07	1000IN-LB	119.0	64.5	46.2	16.6
C-2250	F07 & F10	2250IN-LB	140.5	75.5	54.0	18.6
C-3650	F10 & F12	3650IN-LB	185.2	105.5	79.7	27.3
C-5000	F10 & F12	5000IN-LB	204.8	107.8	79.4	28.3
C-11000	F14	11000IN-LB	238.2	125.0	95.3	35.8



Model	ISO PATTERN	OUTPUT TORQUE AT 80PSI AIR	J	K	L	M
C-125	F04	125IN-LB	M5xP0.8	23.5	12.5	9.0
C-250	F04 or F05	250IN-LB	M5xP0.8	29.7	14.5	11.0
C-450	F05 & F07	450IN-LB	M6xP1.0	30.2	18.8	14.0
C-1000	F05 & F07	1000IN-LB	M8xP1.25	33.5	23.0	17.0
C-2250	F07 & F10	2250IN-LB	M10xP1.5	39.0	29.5	22.0
C-3650	F10 & F12	3650IN-LB	M12xP1.75	97.4	35.5	27.0
C-5000	F10 & F12	5000IN-LB	M12xP1.75	99.0	35.5	27.0
C-11000	F14	11000IN-LB	M16xP2.0	124.7	47.5	36.0



Model	ISO PATTERN	OUTPUT TORQUE AT 80PSI AIR	N	P	Q	W
C-125	F04	125IN-LB	10.0	M5xP0.8	8.0	42.0
C-250	F04 or F05	250IN-LB	17.0	M5xP0.8 or M6xP1.0	8.0 or 10.0	42.0 or 50.0
C-450	F05 & F07	450IN-LB	21.0	M6xP1.0 / M8xP1.25	10.0 / 12.0	50.0 / 70.0
C-1000	F05 & F07	1000IN-LB	25.5	M6xP1.0 / M8xP1.25	10.0 / 12.0	50.0 / 70.0
C-2250	F07 & F10	2250IN-LB	31.0	M8xP1.25 / M10xP1.5	12.0 / 15.0	70.0 / 102.0
C-3650	F10 & F12	3650IN-LB	35.0	M10xP1.5 / M12xP1.75	15.0 / 19.0	102.0 / 125.0
C-5000	F10 & F12	5000IN-LB	35.0	M10xP1.5 / M12xP1.75	15.0 / 19.0	102.0 / 125.0
C-11000	F14	11000IN-LB	45.0	M16xP2.0	24.0	140.0
