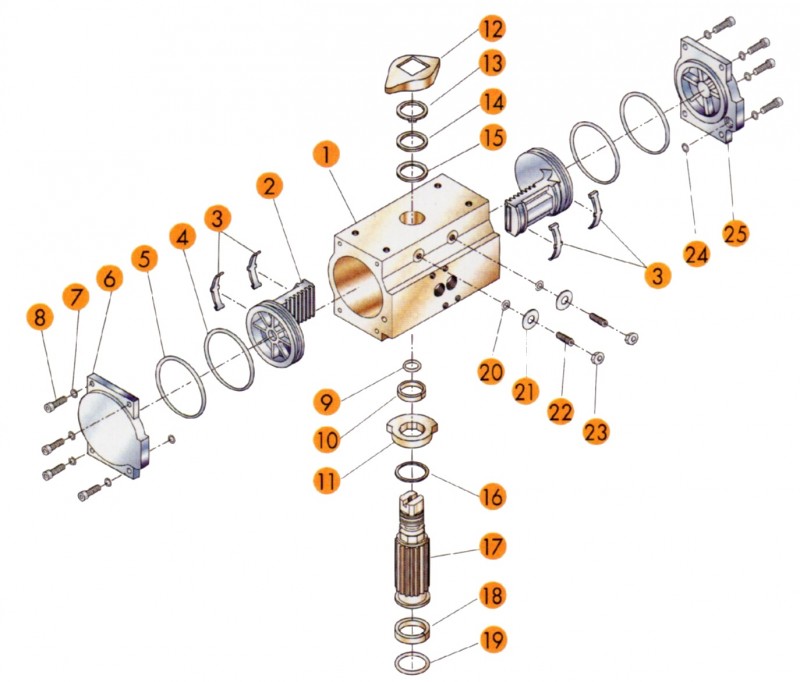

| 1. | BODY: Extruded aluminum alloy ( Hard anodized ) |
13. | RETAINING RING: Stainless steel |
| 2. | PISTONS: Die cast aluminum alloy | 14. | WASHER: Stainless steel |
| 3. | BEARING: Nylon | 15. | BEARING: Nylon |
| 4. | O-RING: Buna-N | 16. | RETAINING RING: Stainless steel |
| 5. | O-RING: Buna-N | 17. | PINION: Carbon steel (Electroless nickel plated) |
| 6. | END CAP(L): Die cast aluminum alloy | 18. | BEARING: Nylon |
| 7. | WASHER: Stainless steel | 19. | O-RING: Buna-N |
| 8. | CAP SCREW: Stainless steel | 20. | O-RING: Buna-N |
| 9. | O-RING: Buna-N | 21. | WASHER: Stainless steel |
| 10. | BEARING: Nylon | 22. | STOP SCREW: Stainless steel |
| 11. | STOP CAM: Sinteral steel | 23. | NUT: Stainless steel |
| 12. | PISTON INDICATOR: Polyethylene | 24. | O-RING: Buna-N |
| 25. | END CAP(R): Die cast aluminum alloy |

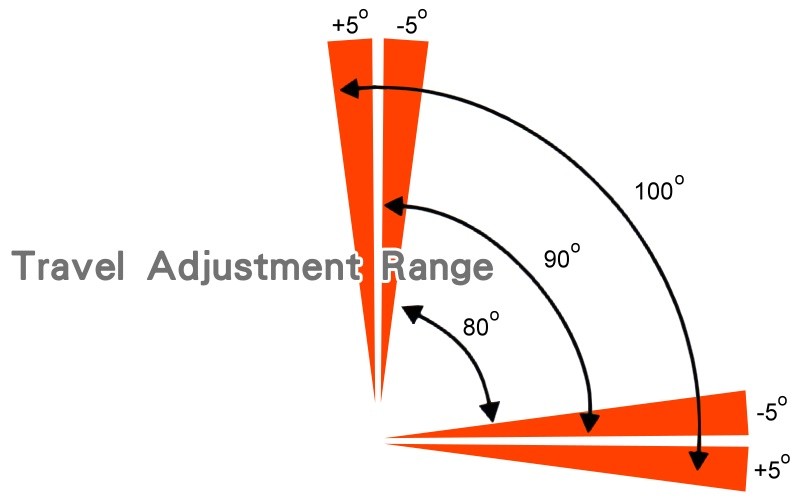

C-MAX C-Series actuators feature bi-directional pinion travel stops. Side located stops allow a full ± 5° of valve travel adjustment, giving a guaranteed range of adjustment between 80° and - 100° of actuator travel. These travel stops are designed to absorb the maximum rated torque of the actuator and the maximum impact loads associated with recommended stroke speed.
Standard Assembly：
Adjustment of the counterclockwise and clockwise rotation limits are accomplished by turning the respective left and right stop adjustment screws to reduce or increase output rotation.
