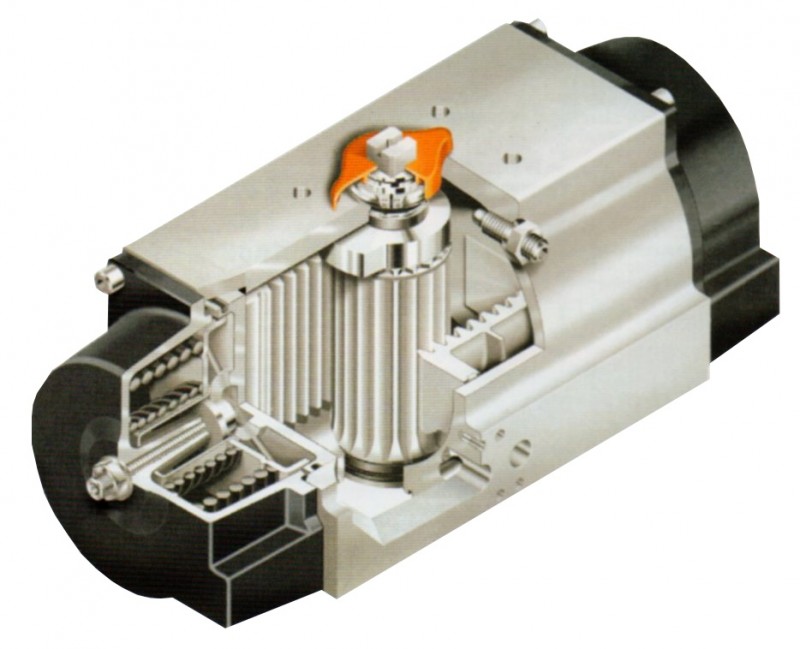

● Operating Pressure Range：40 to 120PSIG.
● Maximum Allowable Working Pressure：150PSIG.
● Maximum Operating Pressure：120PSIG
● Operating Media：Dry or Iubricated non-corrosive gas.
● Operating Temperature Standard：-40°F to +200°F

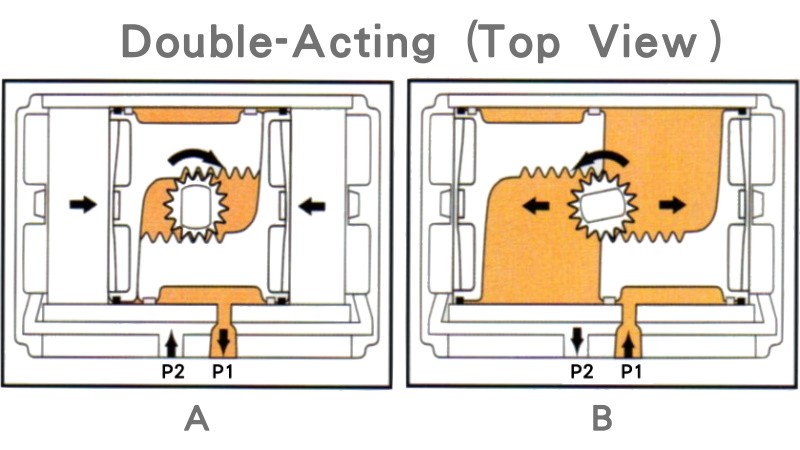

| A： For clockwise output, apply pressure to P2, which force the pistons to move together. The volume between the pistons is exhausted at P1. |
B： For counterclockwise output, apply pressure to P1, which force the pistons apart. The linear travel of the pistons is converted to a rotation of the drive shaft by the rack to pinion connection. The volume outside each piston is exhausted at P2. |

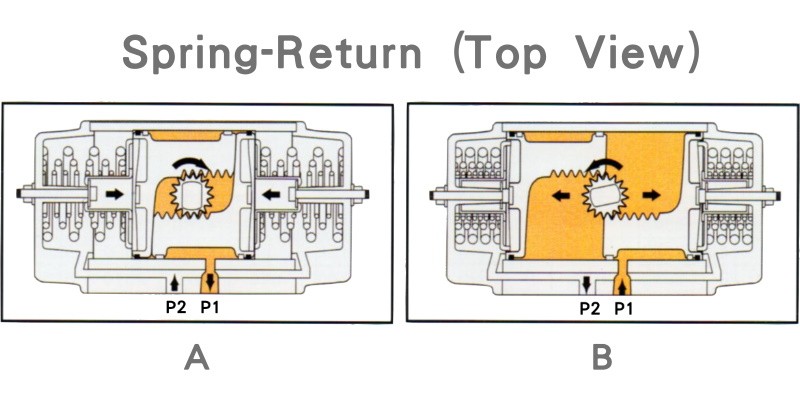

| A： For clockwise output, the volume between the pistons is exhausted at P1, causing the springs to force the pistons together. The volume outside the pistons is vented at P2. |
B： For counterclockwise output, apply pressure to P1, which force the pistons apart and compress the springs. The linear travel of the pistons is converted to a rotation of the drive shaft by the rack to pinion connection. the volume outside each piston is exhausted at P2. |
When required, Reverse Rotation the pistons can be inverted in the housing resulting in a clockwise rotation when pressure is applied to P1 and a counterclockwise rotation when P1 is vented.
